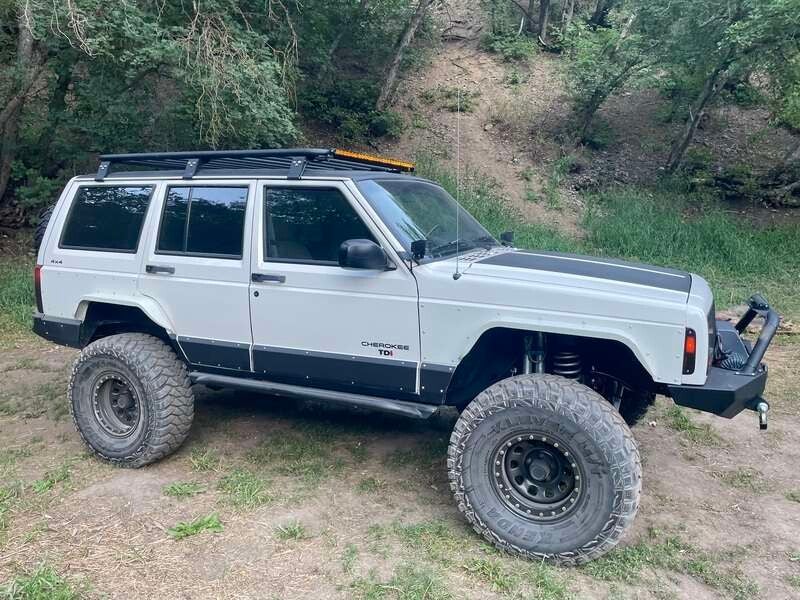

2000 Jeep Cherokee XJ TURBO DIESEL TDI

Sold out
2000 Jeep Cherokee XJ TURBO DIESEL TDI
US$31,900.00

$499 shipping in the Continental USA!

1.9 TDI Swapped Jeep Cherokee XJ with all the right upgrades!! This Jeep is built to take you anywhere it's pointed with incredible torque and power while getting unmatched MPG.... and look good while doing it. This Jeep is a capable overland rig, daily driver, or toy with the ability to conquer the toughest trails around.

Runs and drives great, Manual AX-15 Transmission shifts great, and the 4x4 works wonders. A ton of work has gone into this build to get it where it is. A complete tune-up was just performed that included new Synthetic Oil/Filter, Glow Plugs, radiator & heater core flush, Transmission fluid, Transfer Case fluid, Brake fluid bled, both Differential fluids, etc. TONS OF NEW PARTS have Just been installed on this Jeep to make it the incredible Jeep it is now. This Jeep is super straight with zero rust. Only quality parts were used. To start the build, it was completely stripped down from the full interior and down to the axles, flares, bumpers etc.



The motor is a Volkswagon PD 1.9 TDI Turbo Diesel. The motor received a rebuilt head, new VNT17 upgraded turbo, new camshaft and bearings, new timing belt, new water pump, new A/C Compressor, New High Performance Alternator, and much more. All factory Guages work! Due to different tach signals between VW and Jeep, the RPM guage must be manually triggered each driving cycle by pushing a small button located on the steering column.



The AX-15 manual transmission was swapped in with the motor and was fully serviced, including new clutch kit, Fluid, etc.

SPECIFICATIONS:



Suspension & Steering:

  • 4.5” Rubicon Express Front Coil Springs
  • 3.5" Pro Comp Rear Leaf Packs
  • HD Leaf Spring Shackles
  • HD Rear Shackle Relocation Boxes
  • Rubicon Express Chromoly Lower Arms
  • Rubicon Express Fully Adjustable Upper Control Arms
  • Flex Joint Rod Ends for maximum articulation range
  • Iron Rock Off-road HD 1 ton Steering System
  • New HD Performance Power Steering Gear Box
  • Monroe Steering Stabilizer
  • Core 4x4 HD Track Bar with Johnny Flex Joints
  • Core 4x4 HD Track Bar Relocation Bracket
  • Bilstein Premium reservoir Shocks
  • JKS Sway Bar Quick Disconnects
  • Extended Bump Stops
  • Extended Coil Spring Retainers
  • HD Wheel Bearing Hub Assemblies

Drivetrain & Brakes:

  • 1.9 Volkswagon Turbo Diesel TDI Motor, running great!
  • New X-Man Turbos VNT-17 Turbo Kit
  • Malone Stage 2 Tune
  • Fast Forward Automotive Wire Harness
  • New / Reman cylinder head
  • New Performance Camshaft, bearings, & Lifters
  • New PowerMax Plus Starter
  • New Tandem Pump
  • Rebuilt PD Injectors
  • New Master Timing Belt Kit
  • Oversized Air Cleaner / Intake
  • New Alternator
  • New AC Compressor
  • AX-15 Manual Transmission
  • New Luk Clutch Kit
  • TD Conversions Transmission Adapter Kit
  • NP231 Transfer Case
  • Transfer Case Slip Yoke Eliminator Kit (SYE)
  • TeraFlex Transfer Case 2-Low Kit
  • Aftermarket Performance Intercooler
  • Front Custom Heavy Duty Driveshaft (Double Cardan) 
  • Rear Custom Heavy Duty Double Cardan Driveshaft

Dana 30 Front Axle

  • 4.10 Dana Spicer Gears
  • SOLID Differential Cover
  • Performance Brakes
  • Drilled / Slotted Rotors

Chrysler 8.25 29 Spline Rear Axle

  • Dana Spicer 4.10 Gears
  • Yukon Locker
  • SOLID Differential Cover
  • Rear Performance Disc Brake Conversion
  • Extended Steel Braided Brake Lines 

Armor / Bumpers / Winch / Stiffeners / Etc.

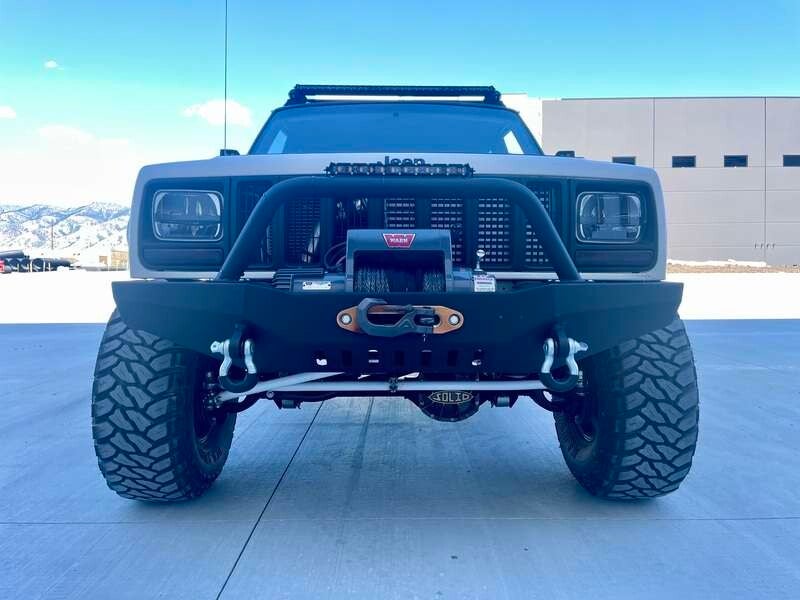

  • Front Steel Winch Bumper w/ Grille Guard
  • WARN Winch 9000i Winch w/ Synthetic Rope & Apex Winch Hook
  • DirtBound Fender Armor w/ Flares - Paint Matched
  • Rear Smittybilt bumper w/ Swing Out Tire Carrier
  • Fuel Jerry Can
  • 5 Ton Recovery Shackles Front & Rear
  • Integrated Receiver Hitch / frame tie ins
  • Full Size Adventure Rack - Will Hold Rooftop Tent / Many Accessories or Tools

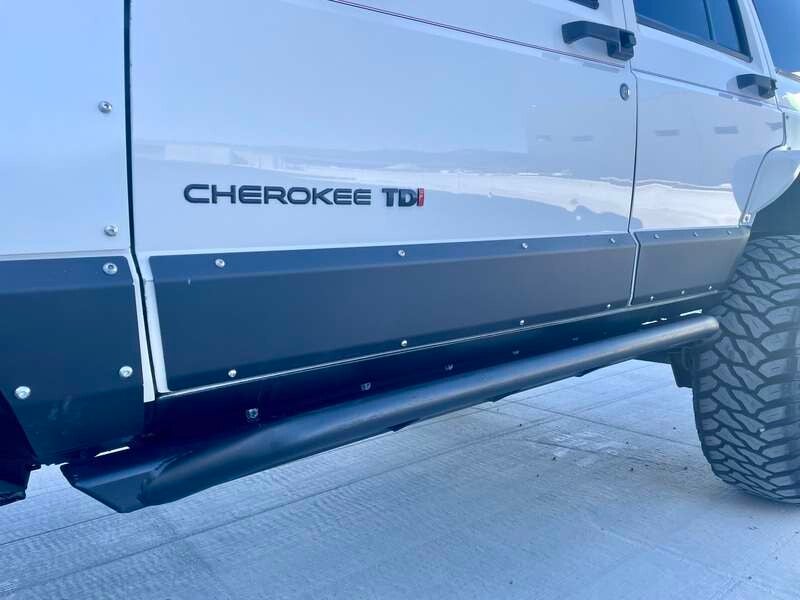

  • JCR Offroad HD Rock Sliders
  • Lower Quarter Armor Plating Front to Back

Wheels & Tires / Aftermarket Parts & Accessories / Lighting:

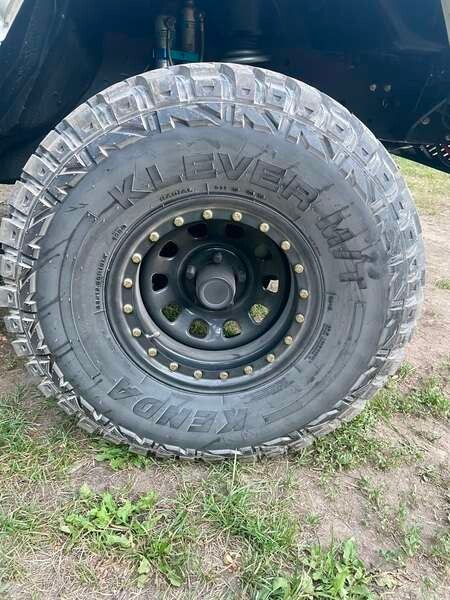

  • NEW Set of 33x12.5x15 Mud Terrain Tires
  • NEW Pro Comp 15x8 Simu Beadlock Wheels
  • New Lug Nut Package
  • 9" Capacitive Touch Screen Stereo w/ Apple CarPlay, Android Auto, Bluetooth, Etc.
  • Rear Facing Camera
  • Premium Speakers All Around
  • 8" Under Seat Subwoofer w/ Control knob up front
  • Quadratec Custom Formed Floor Mats - Front - Rear
  • New Battery
  • 44" LED Light Bar White & Amber Series Single Row
  • 12" White / Amber Single Row LED Bar on Front Bumper
  • 3" LED Pods

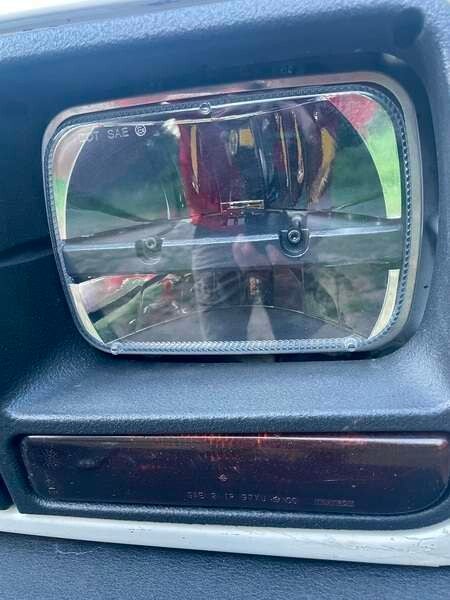

  • DOT LED H4 Headlights
  • Bedlined Rockers, Grille Assembly, Hood and Roof
  • Smoked Marker Lights
  • Tow Shackles Front & Rear
  • TDI Badges
  • & other miscellaneous upgrades

This is your chance to have one of the most unique and best built Cherokees out there! The TDI is a reliable motor with great power and MPG, an amazing combo! A TDI paired with a super clean and built XJ is a dream come true. The interior and exterior looks excellent with some minor imperfections as with any used vehicle. In overall awesome condition.



Clean Title, Ready For Transfer.

Interested in this build? Have Questions? Inquire Now using the form below!
